Description

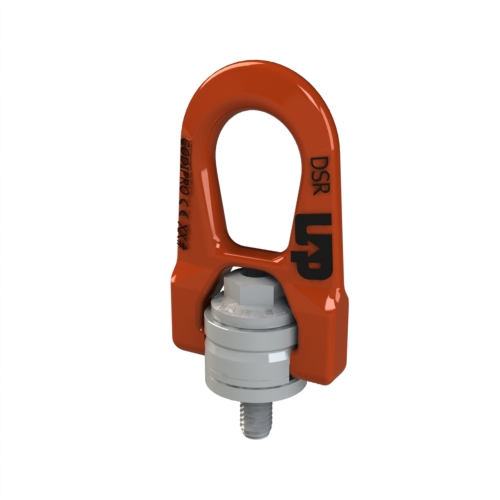

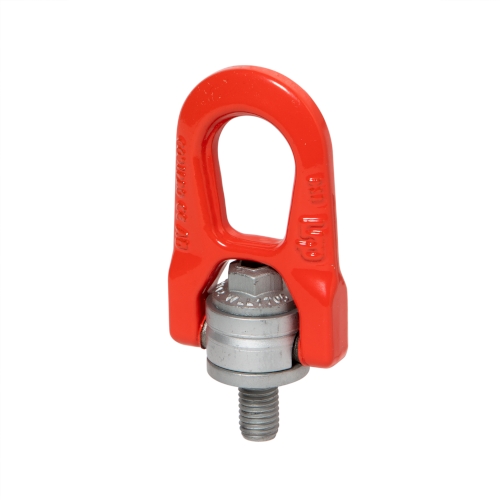

Bolt-On Double Swivel Lifting Rings (DSR) from Codipro:
- Full double swivel action giving greater flexibility and functionality
- Works for any lifting configuration (straight lift, with angle, tilting, rotating)
- Manufactured in compliance with the REACH regulation
- Also available with female threads and in stainless-steel
NEVER EXCEED THE WORKING LOAD LIMIT!
Tags: Lifting Points, Bolt-On Lift Points, DSR, Double Swival Lifting Ring, Codipro, Lifting Lug
Specifications
Number
***Thread
**WLL 5:1
**WLL 4:1

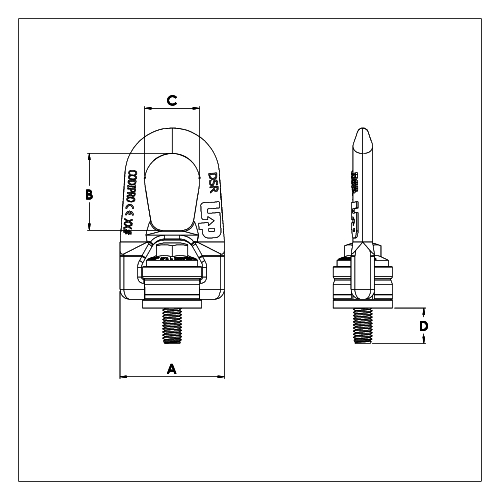

A
DSR U025 UP
1/4"-20 UNC-2B
0.17
0.23
2.09
DSR U516 UP
5/16"-18 UNC-2B
0.50
0.60
2.09
DSR U038 UP
3/8"-16 UNC-2B
0.65
0.80
2.09
DSR U050 UP
1/2"-13 UNC-2B
1.20
1.40
2.09
DSR U058 UP
5/8"-11 UNC-2B
1.95
2.45
2.99
DSR U075 UP
3/4"-10 UNC-2B
2.63
2.63
2.99
DSR U078 UP
7/8"-9 UNC-2B
3.95
4.90
4.53
DSR U100 UP
1"-8 UNC-2B
5.60
6.25
4.53
DSR U118 UP
1 1/8"-7 UNC-2B
5.75
6.50
4.53
DSR U125 UP
1 1/4"-7 UNC-2B
6.75
6.75
4.53
DSR M5 UP
M5x0.80mm
0.07
0.10
2.09
DSR M6 UP
M6x1.00mm
0.15
0.20
2.09
DSR M8 UP
M8x1.25mm
0.40
0.50
2.09
DSR M10 UP
M10x1.50mm
0.70
0.90
2.09
DSR M12 UP
M12x1.75mm
1.05
1.30
2.09
DSR M14 UP
M14x2.00mm
1.40
1.80
2.99
DSR M16 UP
M16x2.00mm
2.00
2.30
2.99
DSR M18 UP
M18x2.50mm
2.30
2.30
2.99
DSR M20 2t5 UP
M20x2.50mm
2.50
2.50
2.99
DSR M20 3t2 UP
M20x2.50mm
2.90
3.20
4.53
B
C
D
1.50
1.06
0.59
* Dimensions are in inches (unless otherwise stated)
** WLL - Working Load Limit (in tons)
*** English threads are UNC-2B
Documentation
DOWNLOADS:
LIMITED WARRANTY - Lifting Rings are subject to end-user, evaluation of fitness for purpose and qualified installation within recommended tolerances. All Lifting Rings are warranted to be free from defects in materials and workmanship at the time of sale. There are no other warranties of any kind, express or implied, and all implied warranties of merchantability and fitness for a particular purpose are disclaimed.
