Description

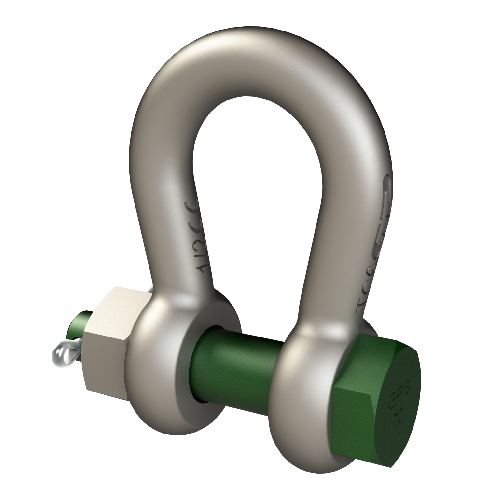

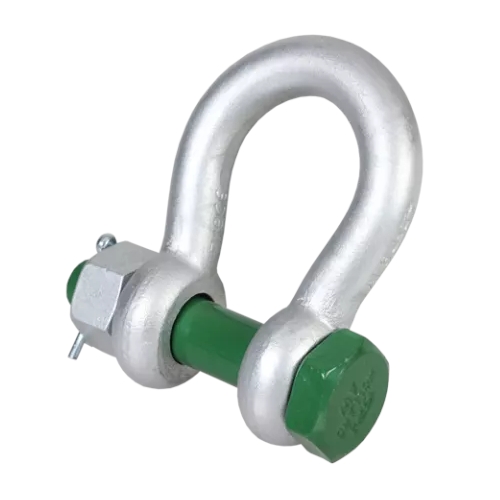

High tensile steel bow shackle with safety pin.
- Bow and pin high tensile steel, Grade 6, quenched and tempered
- MBL equals 6 x WLL
- Hot dipped galvanized
- Certification: 2.1 2.2 3.1 MTCa DNV2.7-1a DNV2.7-1b DNVGL-ST-0378 CE ABS PDA ABD MA
- Standard: EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Type IVA, Class 3, Grade A, From 2 t and upward these shackles comply with ASME B30.26
NEVER EXCEED THE WORKING LOAD LIMIT!
Tags: Lifting Points, Shackles, Bow Shackle, Safety Pin
Specifications
Number
Material
*WLL
A
B
GPGHMB06
Carbon Steel
0.50
1.66
0.47
GPGHMB10
Carbon Steel
1.00
2.38
0.66
GPGHMB11
Carbon Steel
1.50
2.63
0.75
GPGHMB13
Carbon Steel
2.00
3.16
0.88
GPGHMB19
Carbon Steel
4.75
4.53
1.22
GPGHMB22
Carbon Steel
6.50
5.13
1.41

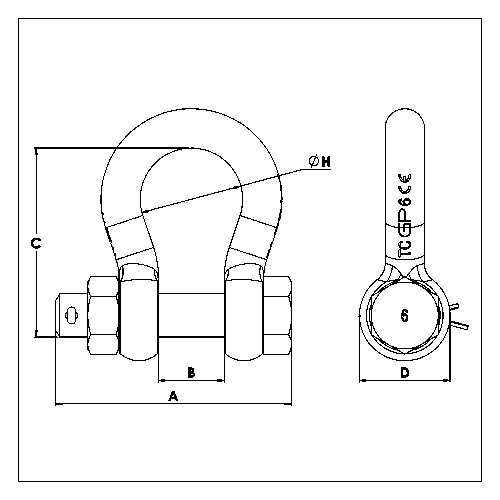

Dimensions are in inches
* WLL - Working Load Limit (in tons)
** Download .ZIP file containing STP file and PDF drawing
Documentation
LIMITED WARRANTY - Shackles are subject to end-user, evaluation of fitness for purpose and qualified installation within recommended tolerances. All Shackles are warranted to be free from defects in materials and workmanship at the time of sale. There are no other warranties of any kind, express or implied, and all implied warranties of merchantability and fitness for a particular purpose are disclaimed.
