Description

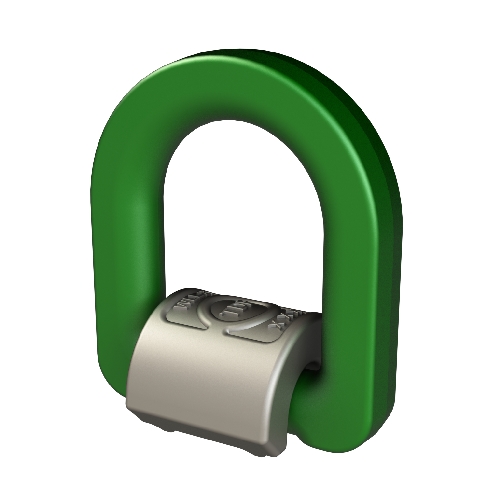

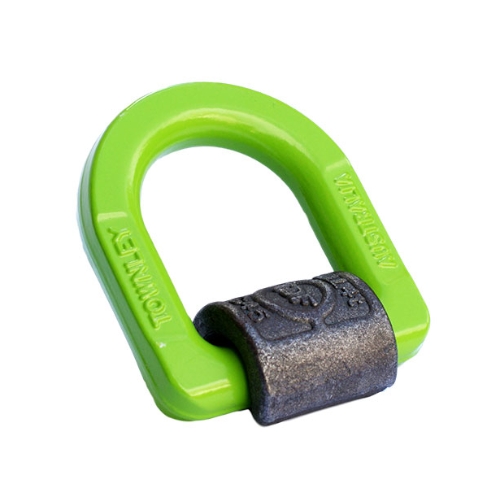

Manufactured exclusively from Australian Made Steel.
- Forged from G300 Mild Steel - AS3679.1 Grade 300PLUS
- Powder Coated Finish
- Readily weldable
- Weld procedure included
- Welding shall always be carried out by a qualified person to AS1554.1:2011
NEVER EXCEED THE WORKING LOAD LIMIT!
Tags: Lifting Points, Weld-On Lift Points, Load Ring

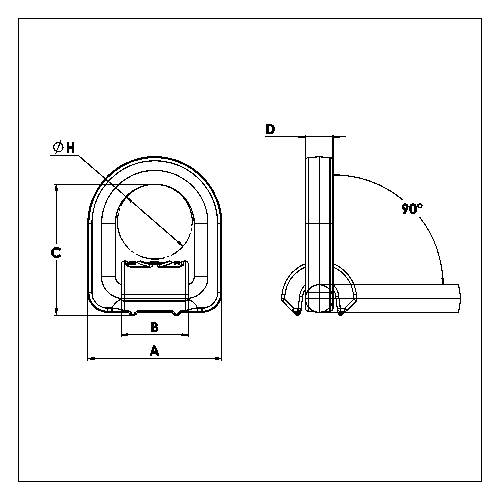

Specifications
Number
Material
**WLL
A
B
TWLP250
Carbon Steel
2.50
2.68
1.34
TWLP400
Carbon Steel
4.00
3.54
1.81
TWLP670
Carbon Steel
6.70
4.57
2.36
TWLP1000
Carbon Steel
10.0
5.12
2.36
TWLP1600
Carbon Steel
16.0
7.56
3.62
* Dimensions are in inches
**WLL - Working Load Limit (in tons)
Documentation
DOWNLOADS:
LIMITED WARRANTY - Load Rings are single-use, one-time placement application only, subject to end-user, evaluation of fitness for purpose and qualified installation within recommended tolerances. All Load Rings are warranted to be free from defects in materials and workmanship at the time of sale. There are no other warranties of any kind, express or implied, and all implied warranties of merchantability and fitness for a particular purpose are disclaimed.
