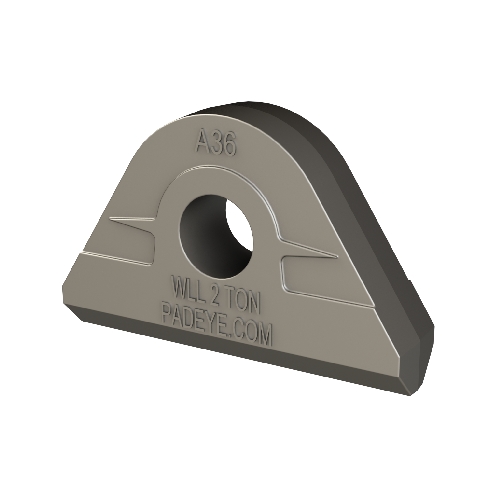

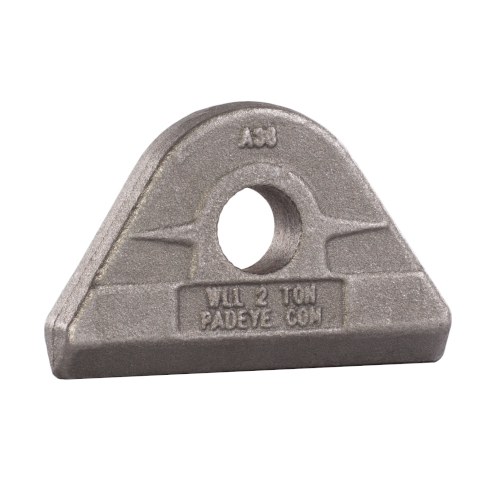

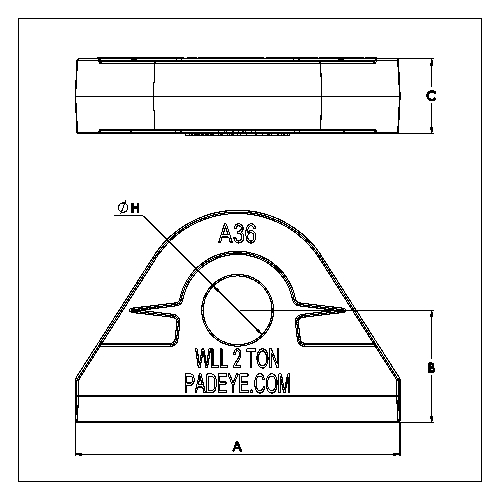

One time placement, weld-on, forged lifting pad eyes.
- Engineered and certified to meet all ASME BTH-1 categories and classes
- Forged to exacting tolerances and stamped with all the vital information
- Available in carbon and stainless steel
- Built-in gage for minimum weld deposit
NEVER EXCEED THE WORKING LOAD LIMIT!
Tags: Lifting Points, Weld-On Lift Points, Certified Pad Eyes, Lifting Lug

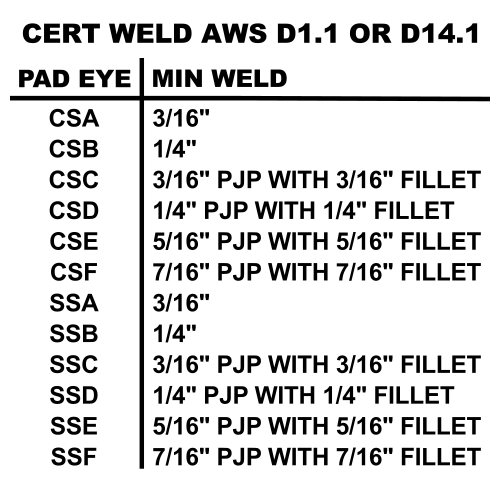

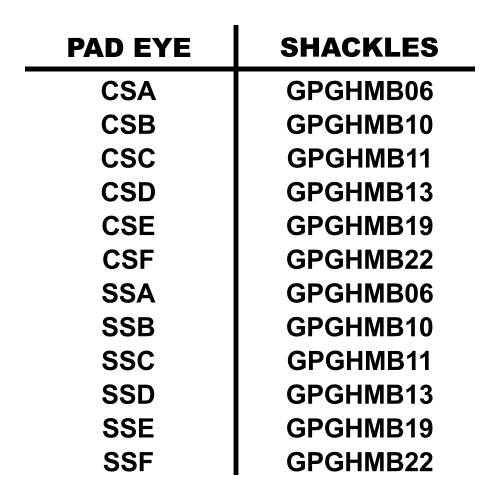

Specifications
Number
Material
*WLL
A
CSA
Carbon Steel
0.50
2.12
CSB
Carbon Steel
1.00
2.44
CSC
Carbon Steel
1.50
2.75
CSD
Carbon Steel
2.00
3.25
CSE
Carbon Steel
4.75
4.43
CSF
Carbon Steel
6.50
5.19
SSA
Stainless Steel
0.50
2.12
SSB
Stainless Steel
1.00
2.44
SSC
Stainless Steel
1.50
2.75
SSD
Stainless Steel
2.00
3.25
SSE
Stainless Steel
4.75
4.43
SSF
Stainless Steel
6.50
5.19
Dimensions are in inches
* WLL - Working Load Limit (in tons)
** Download .ZIP file containing STP file and PDF drawing
